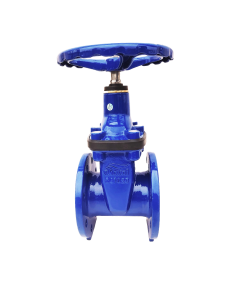

EKO 2100

Valve Design According to BS EN 1171 –
EN 1074-2
Face to Face Length According to EN 558-1
Basic Series 14 (F4)
Flanged Connection According to EN 1092-2
Valve test According to EN 12266
Corrosion Resistant Stem Sealing
Triple O-Rings
Non-rising stem type
Soft seated, low operating Torque.
This Product is WRAS Drinking Water Approved
Suitable for both sewage and Drinking water
applications.
Suitable for Underground Applications.
Can be used as ISOLATION VALVE
NBR Coated Wedge can be used for
Nonflammable Oil Applications
Application Fields and Temperatures of
EKO2100 Series valves vary according to the
selection of the seat.

Body: GGG50
Bonnet: GGG50
Wedge: GGG50 EPDM Vulcanized
Bonnet Bolts: Steel 8.8 + Wax
Stem: 2Cr13, SS316, SS316L
Stem Nut: Brass
Split Collar: Iron+Electroplate
Gasket: Naylon
Gland: Brass
“0” Ring: NBR
Bonnet Gasket: NBR

Inner and outer surface of the valve is powder
epoxy coated (250-350 Microns) for all sizes.

Ready For Electric Actuator
With Electric Actuator
With Handwheel
With Telescopic or Rigid Extension Spindle
2Cr13 as Standard
With Limit Switches or Position Indicator.
With Operation Cap or T-Key
