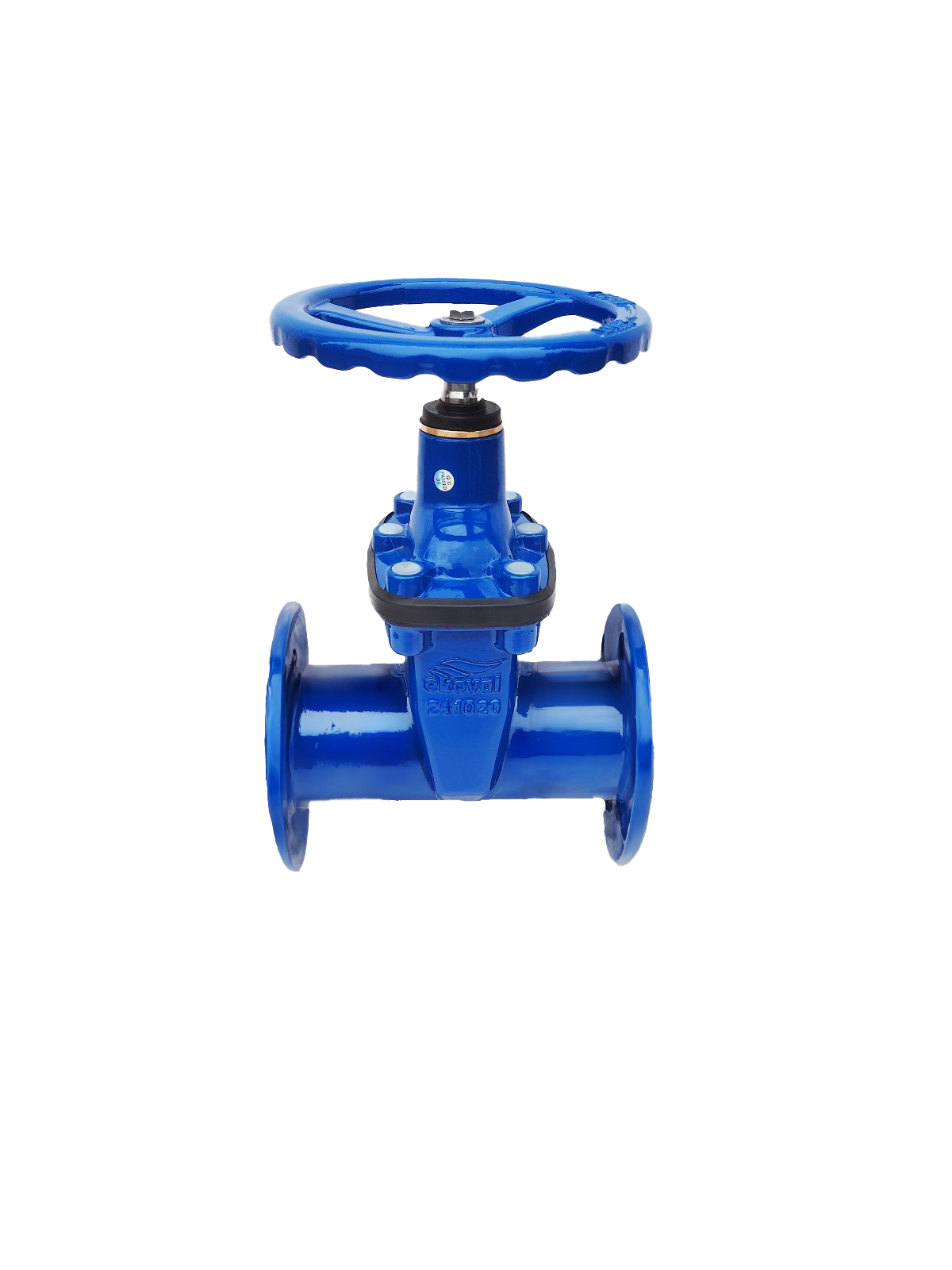

EKOVAL 2150 F5

* Valve Design According to BS EN 1171 ·
* ⁠EN 1074-2
* Face to Face Length According to EN 558-1 Basic Series 14 (F4)
* ⁠Flanged Connection According to EN 1092-2 Valve test According to EN 12266-
* ⁠Corrosion Resistant Stem Sealing Triple O-Rings, 2 Dust Protectors Non-rising stem type
* ⁠Soft seated, low operating Torque.
* ⁠This Product is WRAS Drinking Water Approved Suitable for both sewage and Drinking water applications.
* ⁠Suitable for Underground Applications.
* Can be used as ISOLATION VALVE
* ⁠ NBR Coated Wedge can be used for Nonflammable Oil Applications Application
* ⁠Fields and Temperatures of EKO2100 Series valves vary according to the selection of the seat.

Body: GGG50
* Bonnet: GGG50
·
Wedge: GGG50 EPDM Vulcanized
* Bonnet Bolts: Steel 8.8 + Wax
* Stem: 2Cr13, SS316, SS316L
·
Stem Nut: Brass
Split Collar: Iron+Electroplate
* Gasket: Naylon
* Gland: Brass
* "O" Ring: NBR
* Bonnet Gasket: NBR

Inner and outer surface of the valve is powder epoxy coated (250-350 Microns) for all sizes

Ready For Electric Actuator
With Electric Actuator
With Handwheel
* With Telescopic or Rigid Extension Spindle 2Cr13 as Standard
* With Limit Switches or Position Indicator.
* With Operation Cap or T-Key
